Controlling streams of liquid metal at room temperature

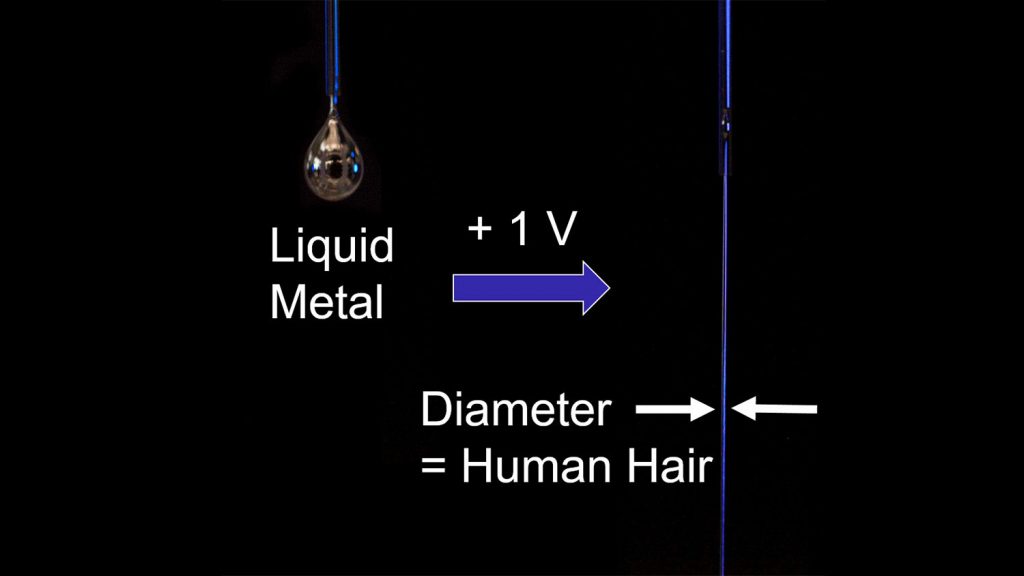

A droplet of liquid metal turns to a stream of liquid metal when a small voltage is applied.
A droplet of liquid metal turns to a stream of liquid metal when a small voltage is applied.

Researchers from North Carolina State University have demonstrated a technique that allows them to produce streams of liquid metal at room temperature. By applying a low voltage to the liquid metal, the researchers were able to tune its surface tension across at least three orders of magnitude.

“Liquids want to form droplets, because that lowers their surface energy,” says Michael Dickey, a professor of chemical and biomolecular engineering at NC State and co-corresponding author of the study. “And that’s especially true for liquid metals, because they have much higher surface tension than other liquids.”

Surface tension is measured in units of millinewtons per meter. Most liquids, such as gasoline or water, have surface tension values between 20 and 72 millinewtons per meter. Gallium alloys, which were used in the NC State study, have a surface tension of at least 500 millinewtons per meter.

“We can lower the surface tension from 500 to 0.1 by applying less than one volt,” says Minyung Song, who recently defended her Ph.D. at NC State and is first author of the paper. “And that completely changes how the liquid metal behaves.”

If you started squeezing gallium indium alloy out of a nozzle, it forms into a droplet due to its high surface tension. If you wanted to create a stream of liquid metal, you’d have to apply a high enough flow-rate to eject it rapidly from the nozzle. But even then, the resulting stream wouldn’t be very stable.

However, applying a low voltage to the liquid metal when the metal is under water creates a thin layer of oxide at the surface. This allows the researchers to create running streams of liquid metal that have the diameter of a human hair – and a low flow-rate. Video of experiments demonstrating the technique can be seen at https://www.youtube.com/watch?v=qLUFQHzVipc&feature=youtu.be.

“This oxide acts like soap molecules do for water, lowering the surface tension and reducing the fluid’s tendency to bead up,” says Karen Daniels, professor of physics at NC State and co-corresponding author of the study, “but here the effect is completely reversible by turning off the voltage. You can’t easily take the soap back out of the water.”

When the low voltage is applied to moving liquid metal, it effectively creates a flowing oxide skin that runs along the surface of the liquid metal. In other words, the oxide layer isn’t static – the whole thing flows steadily out of the nozzle, like a wire.

The technique gives researchers a great deal of control over how the liquid metal behaves, because – up to a point – the higher the voltage they apply to the liquid metal, the lower the liquid metal’s surface tension. However, at the highest voltages, the oxide layer forms a thick crust that disrupts the way the metal flows. This results in a fluid flow that resembles dripping wax. The research team had previously shown that applying low voltage to a liquid metal droplet at rest lowers its surface tension and causes it to form fractal patterns. That study was also performed on liquid metal underwater. This new study is the first to address what happens when the liquid metal is in motion.

“We’re only beginning to explore the full range of potential applications for this technique,” Dickey says. “One idea would be to effectively create liquid metal wires at room temperature. If you encase them in an elastic sheath, you’d have stretchable wires. It could also be used as a new tool for studying and controlling fluid behavior. It’s exciting because more than 100 years of scientific studies show liquid streams break up into droplets. We have found a simple way to stabilize these streams.”

The study, “Overcoming Rayleigh Plateau Instabilities: Stabilizing and Destabilizing Liquid Metal Streams via Electrochemical Oxidation,” is published in Proceedings of the National Academy of Sciences. The paper was co-authored by Karen Kartawira, a high school student; Cheng Li and Collin Eaker, who are former grad students at NC State; Keith Hillaire, a current grad student at NC State; and Abolfazl Kiani, a visiting scholar at NC State.

The work was done with support from the National Science Foundation, under grants CBET-1510772 and DMR-160897.

-shipman-

Note to Editors: The study abstract follows.

“Overcoming Rayleigh Plateau Instabilities: Stabilizing and Destabilizing Liquid Metal Streams via Electrochemical Oxidation”

Authors: Minyung Song, Karin Kartawira, Keith D. Hillaire, Cheng Li, Collin B. Eaker, Abolfazl Kiani, Karen E. Daniels and Michael D. Dickey, North Carolina State University

Published: July 2020, Proceedings of the National Academy of Sciences

Abstract: Liquids typically form droplets when exiting a nozzle. Jets – cylindrical streams of fluid—can form transiently at higher fluid velocities, yet interfacial tension rapidly drives jet-breakup into droplets via the Rayleigh-Plateau instability. Liquid metal is an unlikely candidate to form stable jets since it has enormous interfacial tension and low viscosity. We report that electrochemical anodization significantly lowers the effective tension of a stream of metal, transitioning it from droplets to long (long lifetime and length) wires with 100 μm diameters without the need for high velocities. Whereas surface minimization drives Rayleigh-Plateau instabilities, these streams of metal increase in surface area when laid flat upon a surface due to the low interfacial tension. The ability to tune interfacial tension over at least three orders of magnitude using modest potential (<1 V) enables new approaches for production of metallic structures at room temperature, on-demand fluid-in-fluid structuring, and new tools for studying and controlling fluid behavior.
