New technique allows printing of flexible, stretchable silver nanowire circuits

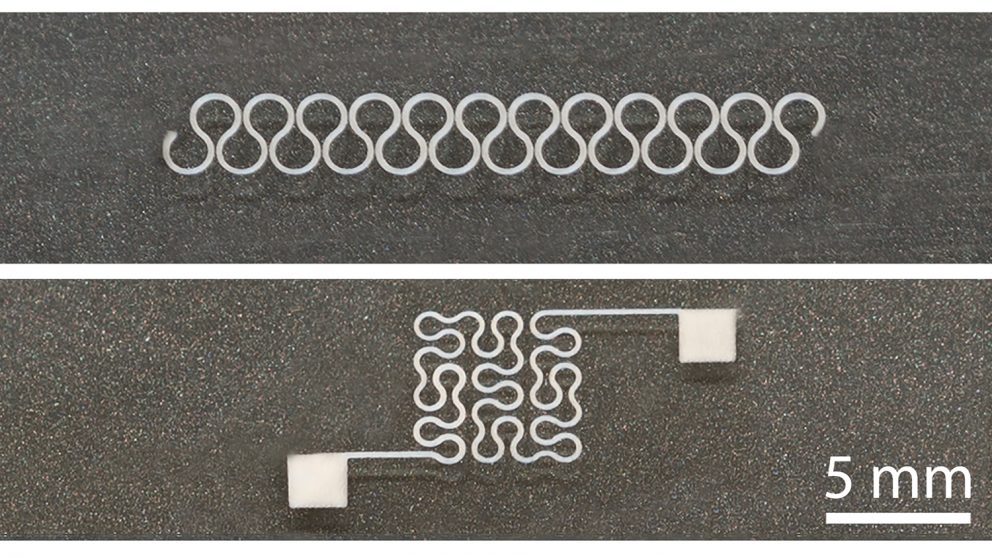

Two printed silver nanowire patterns, horseshoe and Peano curve, with high resolution.

Two printed silver nanowire patterns, horseshoe and Peano curve, with high resolution

Silver nanowires have drawn significant interest in recent years for use in many applications, ranging from prosthetic devices to wearable health sensors, due to their flexibility, stretchability and conductive properties. While proof-of-concept experiments have been promising, there have been significant challenges to printing highly integrated circuits using silver nanowires.

Silver nanoparticles can be used to print circuits, but the nanoparticles produce circuits that are more brittle and less conductive than silver nanowires. But conventional techniques for printing circuits don’t work well with silver nanowires; the nanowires often clog the printing nozzles.

“Our approach uses electrohydrodynamic printing, which relies on electrostatic force to eject the ink from the nozzle and draw it to the appropriate site on the substrate,” says Dr. Jingyan Dong, co-corresponding author of a paper on the work and an associate professor in the Edward P. Fitts Department of Industrial and Systems Engineering. “This approach allows us to use a very wide nozzle — which prevents clogging — while retaining very fine printing resolution.”

“And because our ‘ink’ consists of a solvent containing silver nanowires that are typically more than 20 micrometers long, the resulting circuits have the desired conductivity, flexibility and stretchability,” says Dr. Yong Zhu, a professor in the Department of Mechanical and Aerospace Engineering and co-corresponding author of the paper.

“In addition, the solvent we use is both nontoxic and water-soluble,” says Zheng Cui, a Ph.D. student in Zhu’s lab and lead author of the paper. “Once the circuit is printed, the solvent can simply be washed off.”

What’s more, the size of the printing area is limited only by the size of the printer, meaning the technique could be easily scaled up.

The researchers have used the new technique to create prototypes that make use of the silver nanowire circuits, including a glove with an internal heater and a wearable electrode for use in electrocardiography. NC State has filed a provisional patent on the technique.

“Given the technique’s efficiency, direct writing capability and scalability, we’re optimistic that this can be used to advance the development of flexible, stretchable electronics using silver nanowires — making these devices practical from a manufacturing perspective,” Zhu says.

The paper was co-authored by Yiwei Han, a Ph.D. student in Dong’s research group, and Dr. Qijin Huang, a former postdoctoral researcher at NC State.
