New technique uses templates to guide self-folding 3-D structures

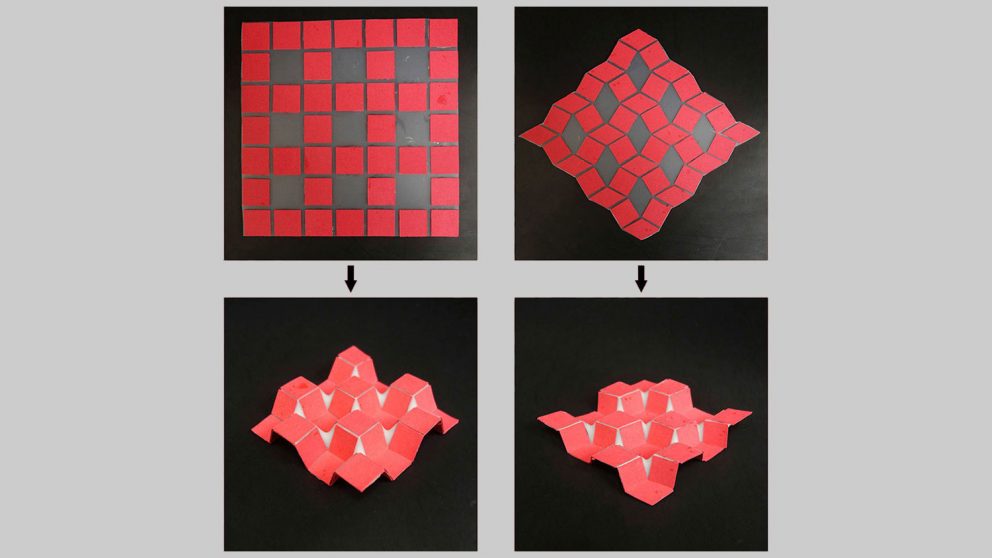

The two-dimensional shapes shown at the top of the image fold themselves into the three-dimensional structures shown on the bottom.

The two-dimensional shapes shown at the top of the image fold themselves into the three-dimensional structures shown on the bottom.

Researchers from North Carolina State University have developed a new technique to control self-folding three-dimensional (3-D) structures. Specifically, the researchers use templates to constrain deformation in certain selected areas on a two-dimensional structure, which in turn dictates the resulting 3-D structure of the material.

The new technique does not rely on cutting or printing on the material, as most other self-folding origami techniques do. It is also different from continuous shape morphing, which is typically controlled by engineering the in-plane strain at various parts of the material. Instead, the researchers applied paperboard sheets to a polymer substrate, forming specific patterns.

“When heat is applied to the polymer, it shrinks,” says Yong Zhu, a professor of mechanical and aerospace engineering at NC State and corresponding author of a paper on the work. “However, the sections of polymer that are attached to the paperboard are restrained from shrinking, causing the overall substrate to bend and curve.”

By varying the pattern made by the paperboard templates, the researchers are able to create a variety of shapes, from simple cones to complex, tiered structures. The self-folding operations can be executed at temperatures as low as 120 degrees Celsius.

“This is a proof of concept paper, and next steps include incorporating functional electronic elements into the material, giving it potential value for manufacturing applications,” says Jianxun Cui, first author of the paper and a postdoctoral researcher at Carnegie Mellon University who worked on this project while a Ph.D. student at NC State.

The paper, “Origami/Kirigami Guided Morphing of Composite Sheets,” is published in the journal Advanced Functional Materials. The paper was co-authored by Felipe Poblete, a Ph.D. student at NC State. The work was done with support from the National Science Foundation under the Emerging Frontiers in Research and Innovation program, grant number EFRI-1240438.

-shipman-

Note to Editors: The study abstract follows.

“Origami/Kirigami Guided Morphing of Composite Sheets”

Authors: Jianxun Cui, Felipe R. Poblete and Yong Zhu, North Carolina State University

Published: Aug. 1, Advanced Functional Materials

DOI: 10.1002/adfm.201802768

Abstract: Several strategies have been recently exploited to transform 2D sheets into desired 3D structures. For example, soft materials can be morphed into 3D continuously curved structures by inducing non-homogeneous strain. On the other hand, rigid materials can be folded, often by origami/kirigami-inspired approaches (i.e. flat sheets are folded along pre-designed crease patterns). Here, for the first time, combining the two strategies we fabricate composite sheets by embedding rigid origami/kirigami skeleton with creases into heat shrinkable polymer sheet to create novel 3D structures. Upon heating, shrinkage of the polymer sheets is constrained by the origami/kirigami patterns, giving rise to laterally non-uniform strain. As a result, Gaussian curvature of the composite sheets is changed, and flat sheets are transformed into 3D curved structures. A series of 3D structures are folded using this approach, including cones and truncated pyramids with different base shapes. Flat origami loops are folded into step structures. Tessellation of origami loops is transformed into 3D checkerboard pattern.
